Key Features
Compact and Lightweight
Slim design for easy integration without performance compromise.
World's First Real-time Auto Calibration & Compensation
Includes cross-talk, temperature, hysteresis, and linearity compensation.
High Precision
Accurate and repeatable measurements with 0.1% accuracy.
Overload Protection
Extremely rugged and durable.
High Rigidity & Stiffness
Exceptional performance ensuring reliable measurements under high load conditions.
Communication
CAN, EtherCAT, RS485, and SPI protocols
Technical Specifications
Load and Capacity
- Rated Load
Fxy: 150 ~ 1000 (N)
Fz: 300 ~ 2000 (N)
Txyz: 10 ~ 200 (Nm)
- Safety Overload: 500%
Accuracy & Performance
- Resolution
Fxy: 1/60 ~ 0.1 (N)
Fz: 1/30 ~ 0.2 (N)
Txyz: 1/900 ~ 0.04 (Nm)
Physical & Environmental

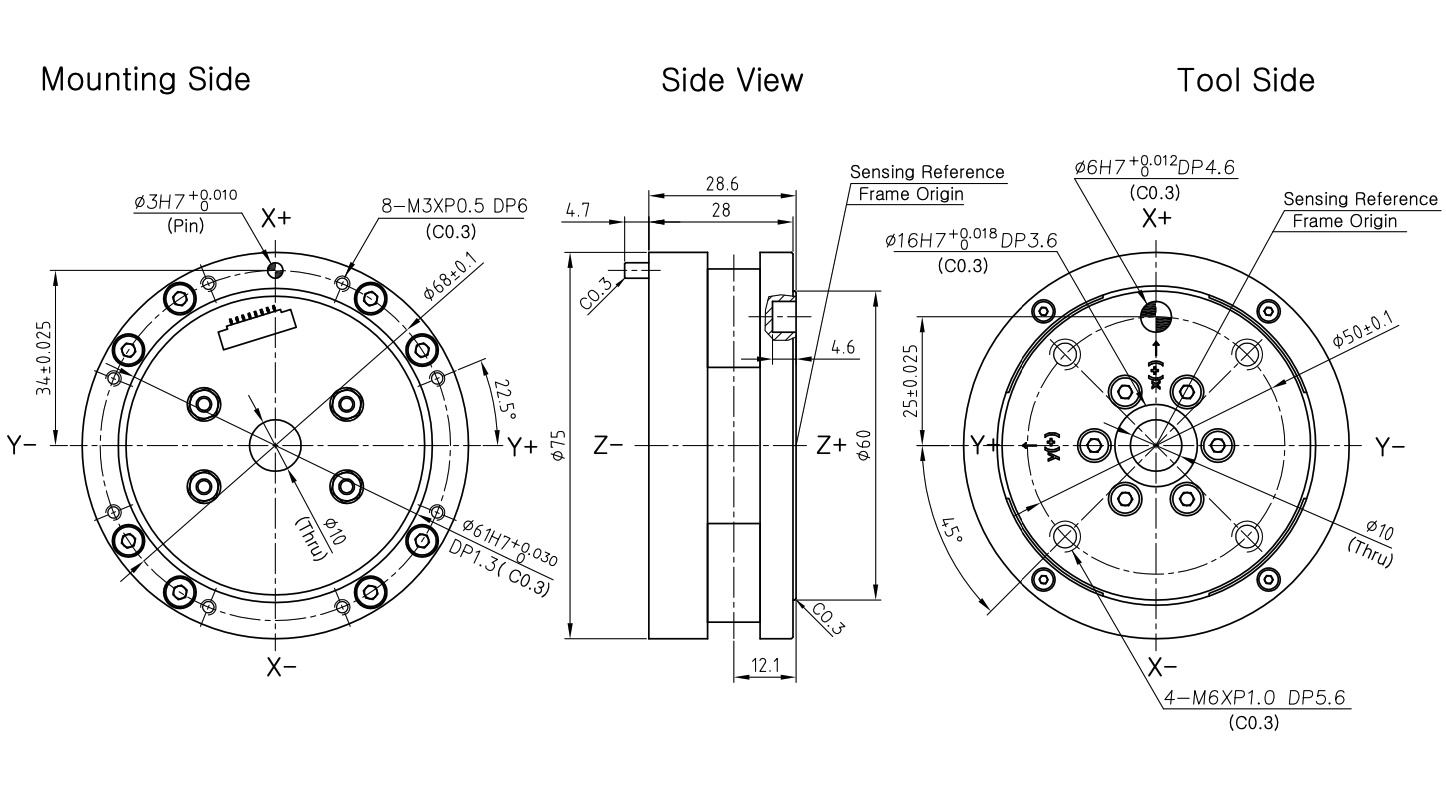

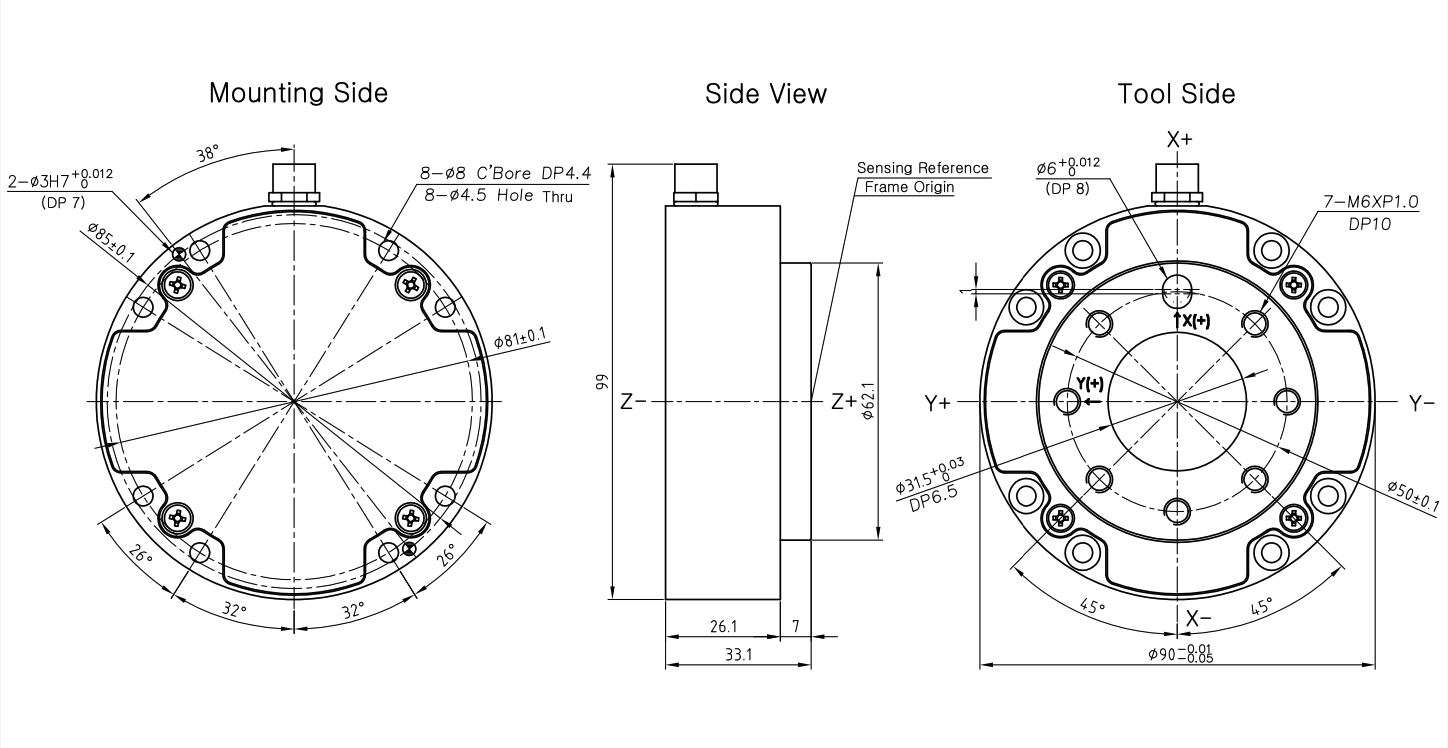

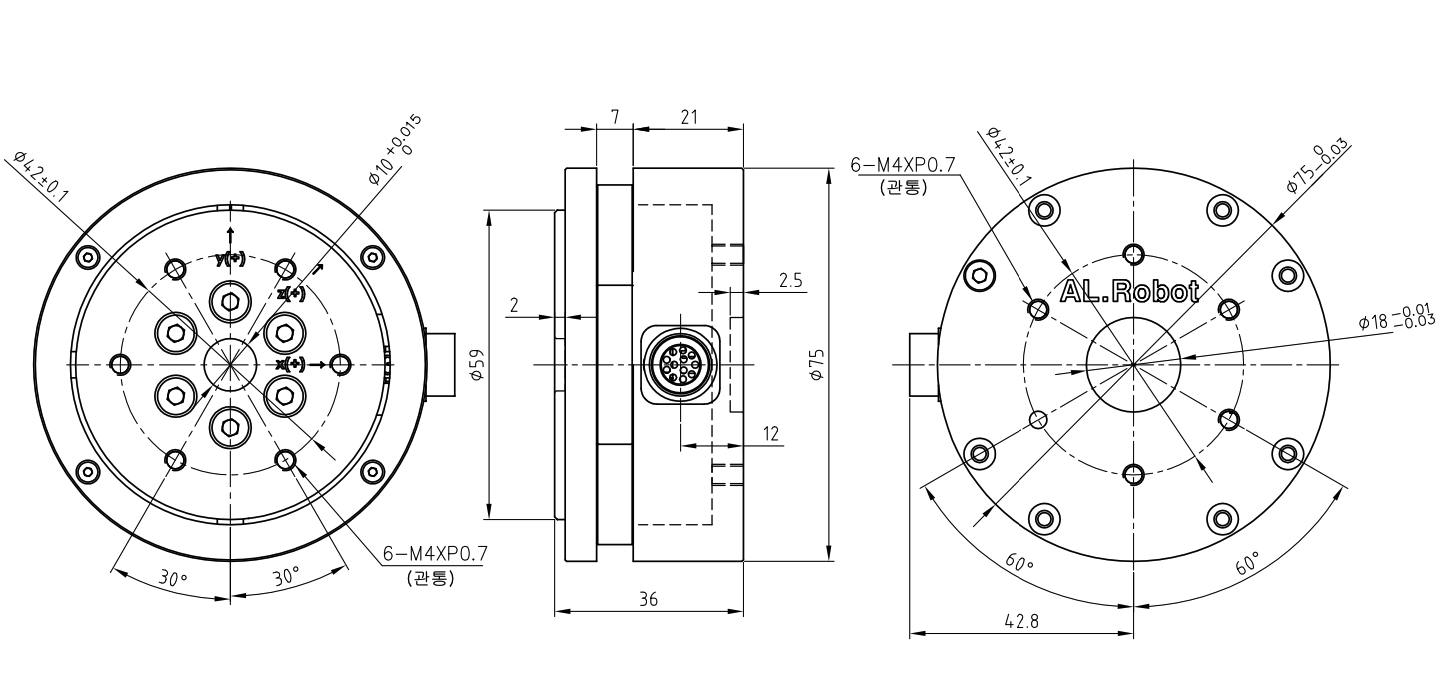

• Diameter: 75 ~ 130mm
• Height: 28.6 ~ 41.6mm
• Weight: 265 ~ 945g
• Operating Temperature: -10 ~ 60℃
• Power: 5Vdc
All Product Data Sheet

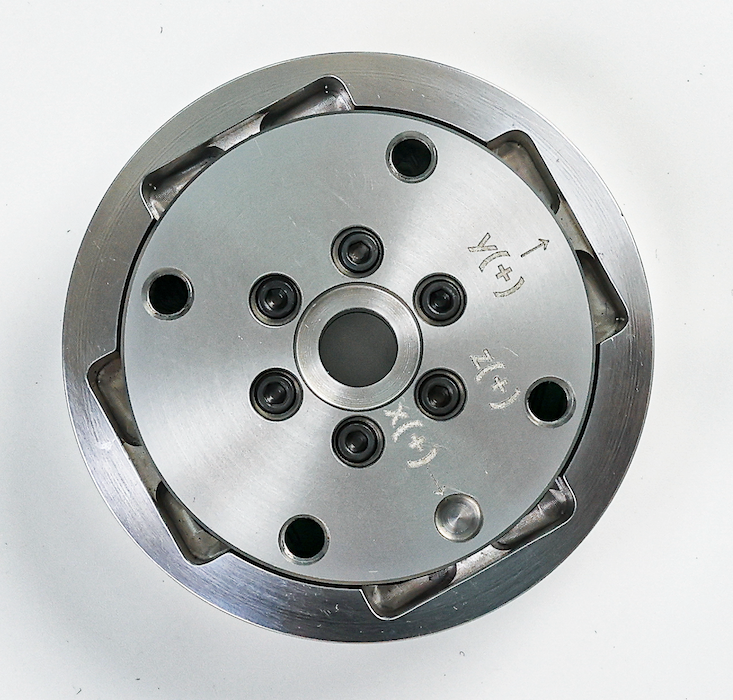

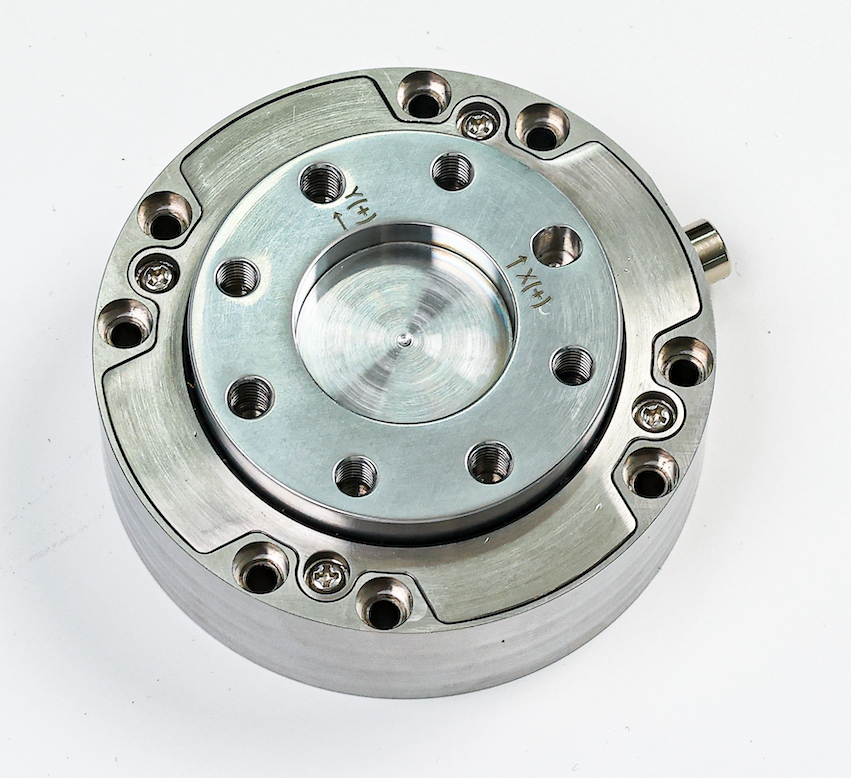

6-Axis Force/Torque Sensors
You may select the your 6-Axis Force/Torque Sensors by [Rated Load] for your applications of the small robotic joints, medium-sized robotic applications or heavy-duty applications, offering a capacity of 150N-10Nm ~ 1000N-200Nm.
