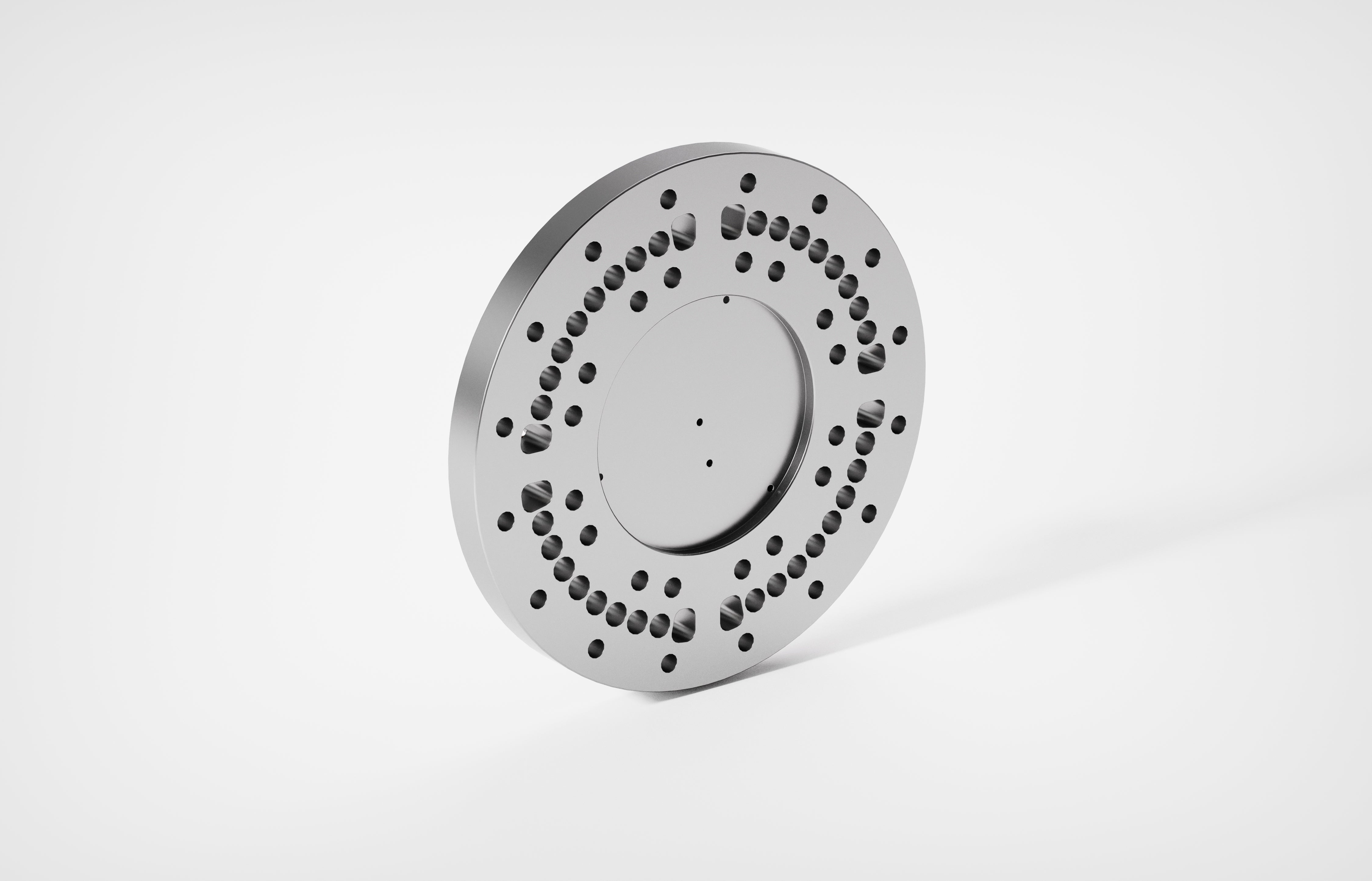

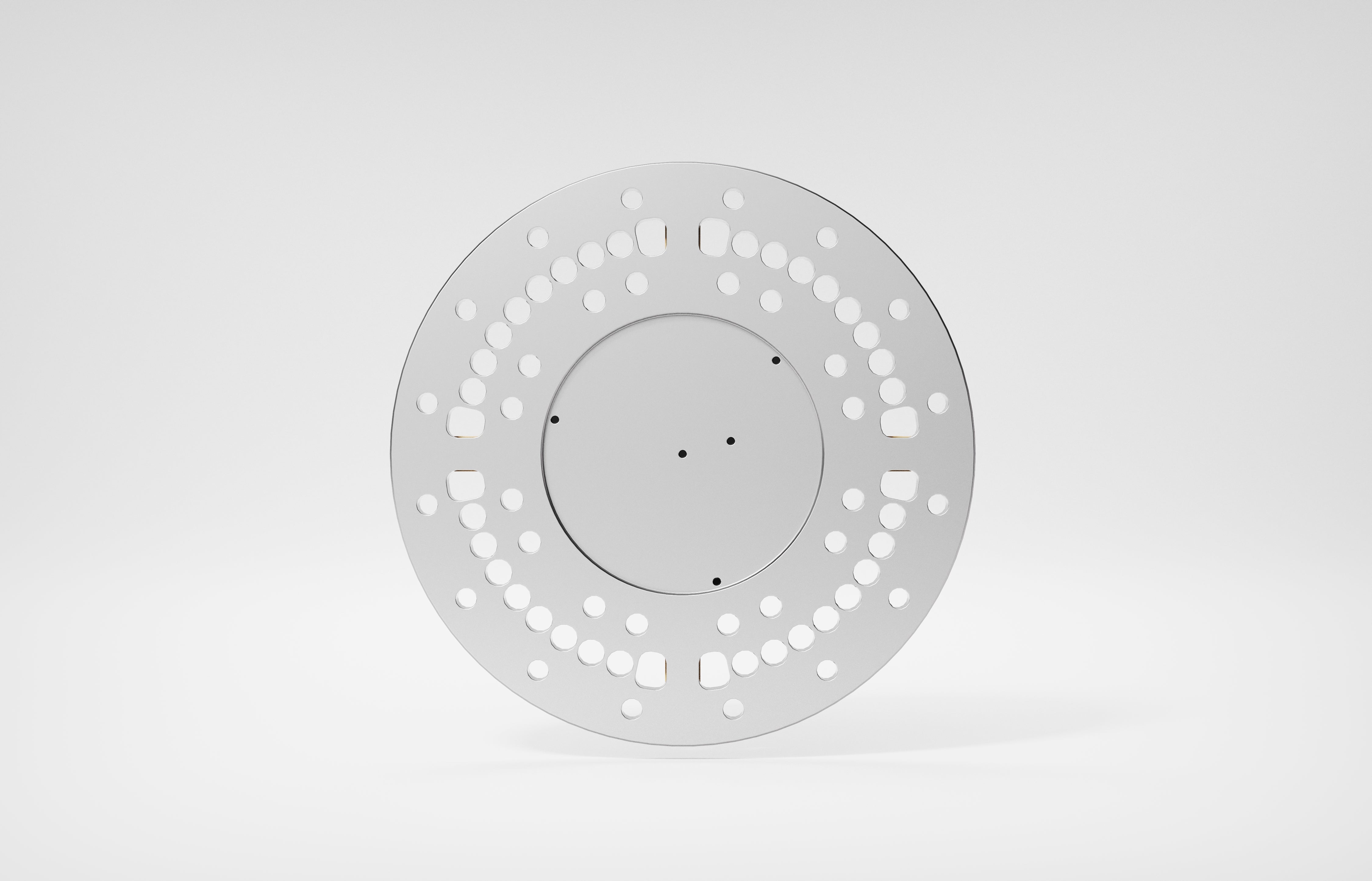

Joint Torque Sensor_renewal

Everyone talks about accuracy.

But in a joint that must repeat the same motion thousands of times, true accuracy begins with structure.

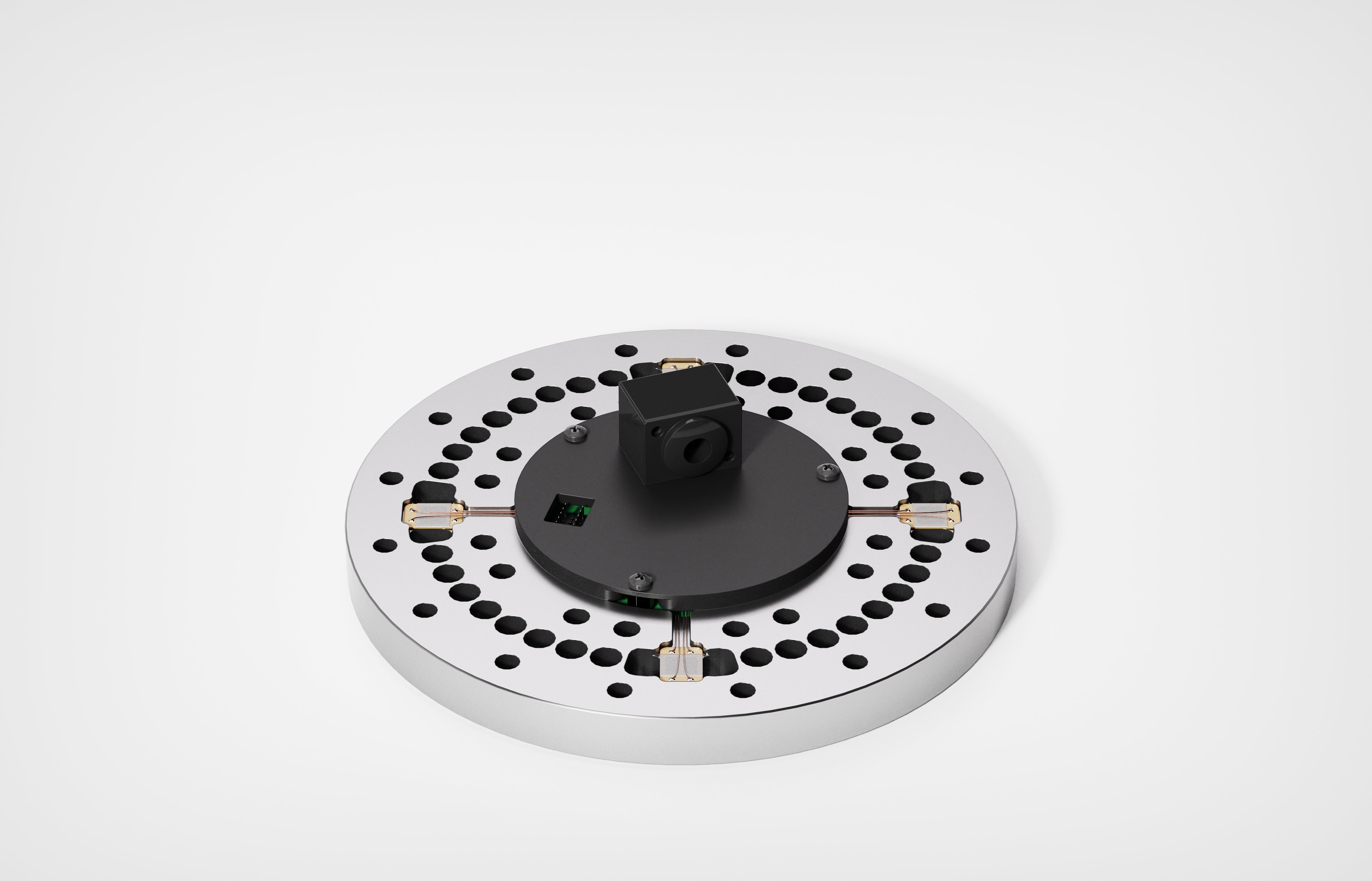

At AL.Robot, we start from fundamentals: how force flows, how strain gauges take stress.
Through FEM analysis, optimized gauge placement, and automated validation,
we build sensors that prevent errors instead of correcting them.

Accuracy by design — not by adjustment.

Key Features

Our joint torque sensors are engineered with structures that prioritize reliability from the start.
Each feature reflects our commitment to precise measurement, robust design, and seamless integration into robotic joints.

High Reliability & Precision

Delivers stable torque output even under repeated loads, maintaining ±0.2% F.S. accuracy.
Ensures consistent feedback for precise and safe robotic joint control.

Compact & Lightweight

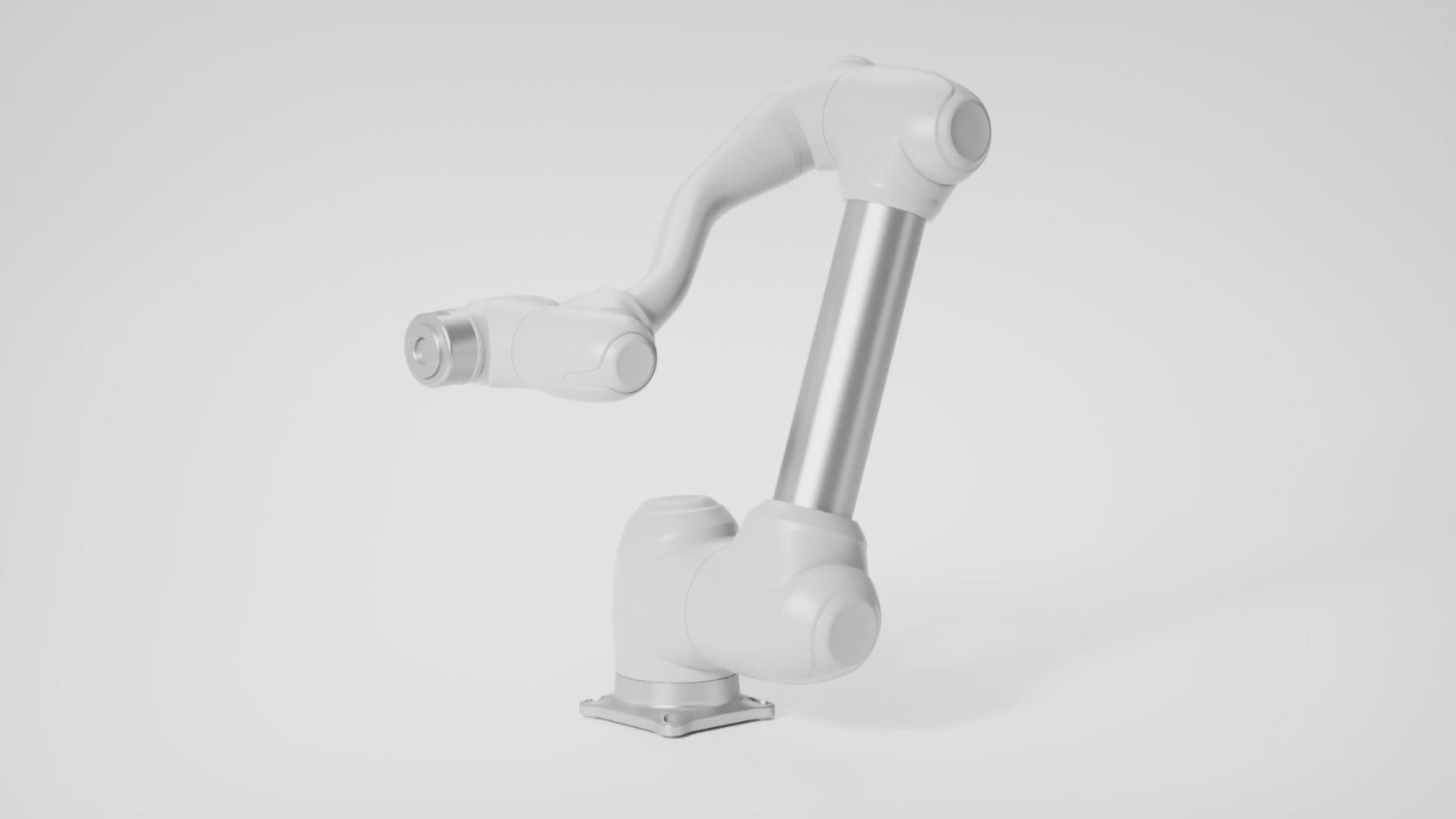

Slim, high-strength design optimized for integration into collaborative and humanoid robots.
Reduces payload burden while maximizing structural rigidity.

Dual-Channel System

Independent A/B signal outputs enhance redundancy and operational safety.
Supports RS-485 dual communication for robust system reliability.

Crosstalk Elimination

Minimizes axis interference for pure torque measurement.
Provides accurate force/torque feedback essential for advanced control tasks.

High Overload Stability

Engineered to withstand loads beyond rated capacity without structural failure.
Ensures long-term durability and reliability in demanding industrial environments.

Harmonic Drive Compatibility

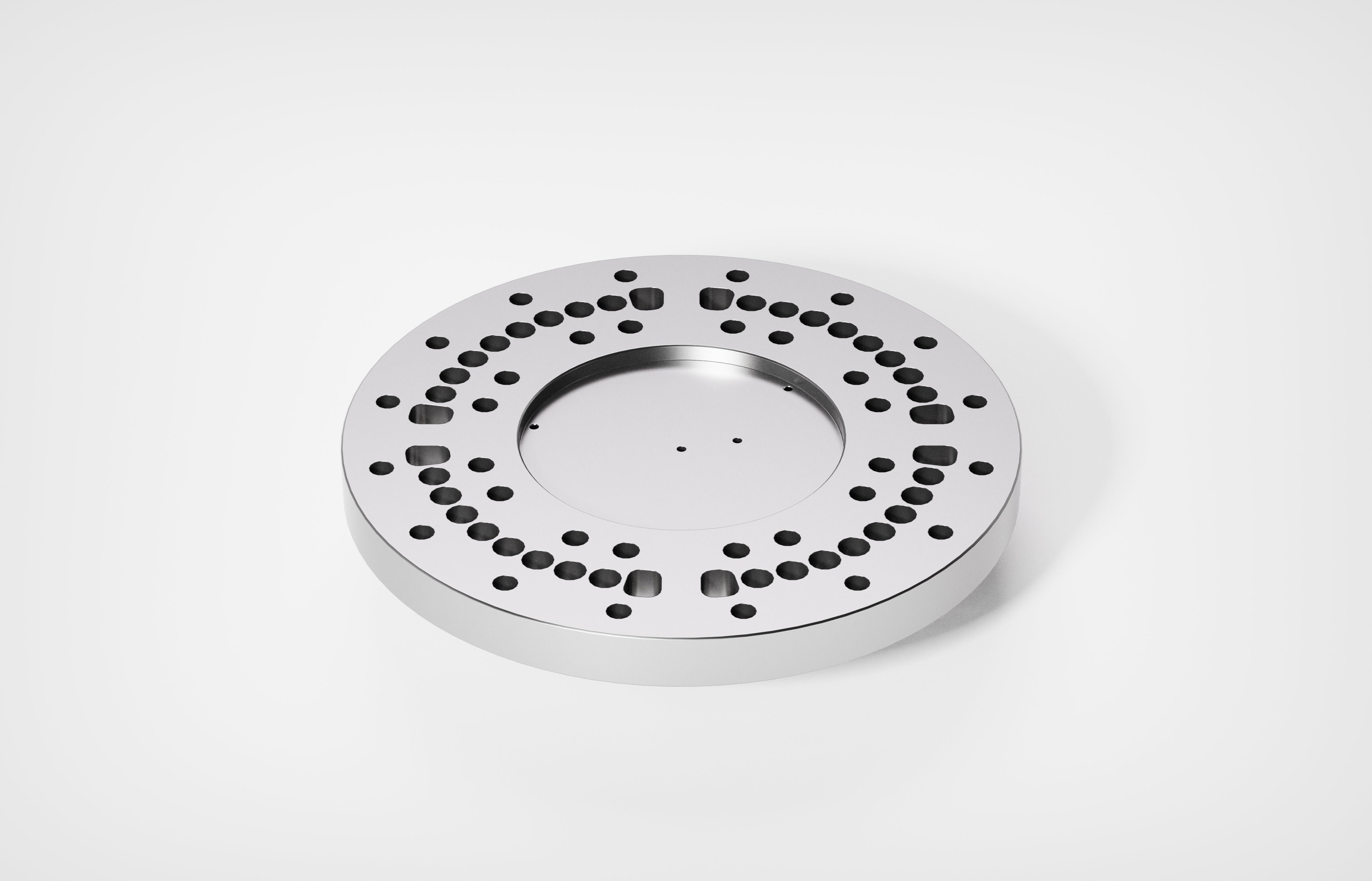

Designed with standardized flange dimensions for harmonic drive integration.
Ensures seamless mechanical coupling and stable torque transmission without modification.

Technical Specs

Delivers accuracy performance optimized for precise robotic control.

Accuracy Performance

Linearity ±0.2% F.S.
Hysteresis ±0.2% F.S.
Crosstalk ±0.5% F.S.
Temp. Drift ±0.1% F.S./10℃

Sensor Specification

Ensures durability and stability under diverse mechanical loads.

Category	Item	Rated
Torque Capacity	Maximum Torque	300%
Torque Capacity	Break Torque	600%
Bending Strength	Allowable Bending Moment	100%
Bending Strength	Destructive Bending Moment	300%
Axial Load	Allowable Axial Load	~5×
Axial Load	Destructive Axial Load	~220×
Radial Load	Allowable Radial Load	~9×
Radial Load	Destructive Radial Load	~160×
Rigidity	Torsional Rigidity	—
Rigidity	Moment Rigidity	-

Accuracy standards may vary depending on the product model and specifications.
Certain precision parameters can be adjusted upon customer request.
For higher accuracy requirements, customization is available through prior consultation.

Operational Specifications

Provides reliable performance across electrical, communication, and environmental conditions.

Category	Item	Specification	Remarks
Power & Electrical	Supply Voltage	24V ±10%	DC Input
	Power Rise Time	≤ 1 sec	—
	Current Consumption	≤ 40 mA	—
Communication	Communication Method	RS-485 (2-wire)	Baud rate: 3 Mbps
Communication	Output Noise	±0.1% F.S.	—
Environmental	Operating Temp. Range	0℃ ~ 80℃	—
	Storage Temp. Range	-20℃ ~ 100℃	—
	Operating Humidity	20% ~ 85% RH	Non-condensing
	Storage Humidity	20% ~ 70% RH	—
	Ingress Protection	Equivalent to IP50	—
	Insulation Resistance	≥1 MΩ (100VDC)	—
Thermal Accuracy	Temperature Accuracy	±0.2℃	—
